Company Name: Hwatime
Origin: china
Trade Mark: Hwatime

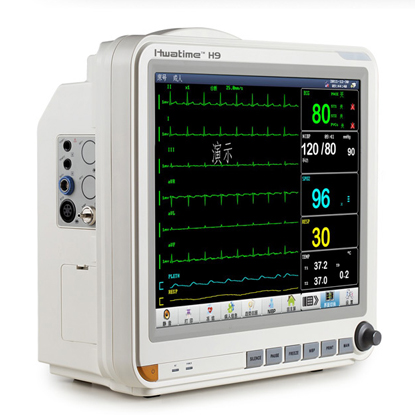

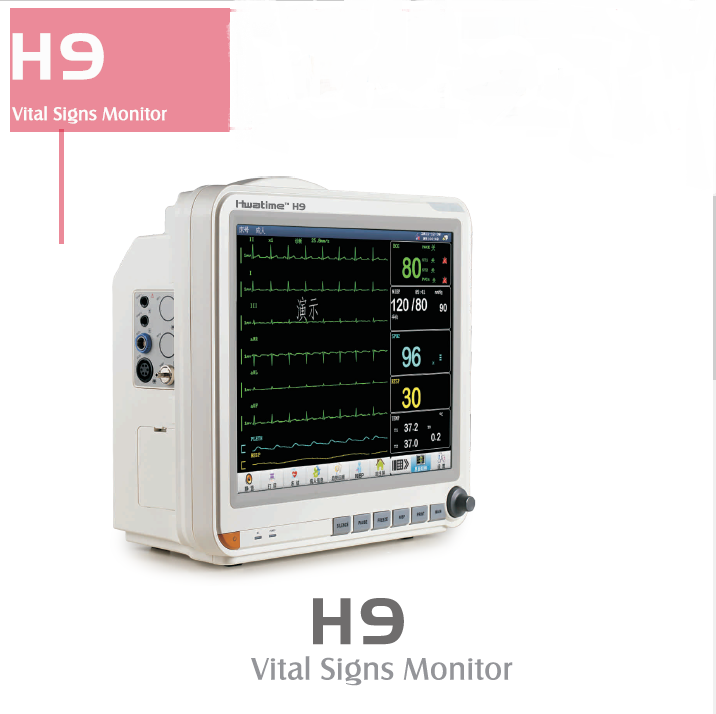

Model: H9
Download Patient MonitorSpecifications:
• Technical specification :
>15" Colur TFT Display, led backlight .
> Operating Mode Selection: Neonatal/Pediatric/Adult.
> Visual and Audio alarms, adjustable.
> Patient management, name and age and id.
> Network with Central Station Software,
> Built-in removable and rechargeable lithium battery,
> easy operating UI with both Keypad menu.
> Powerful data storage and managment, Trend graph,Trend table, etc
>Arrythmia analysis and S-T segment analysis.
> Compatible to Neonatal, Pediatric, Adult Patients
Standard parameters:
3/5-Lead ECG, Hwatime SpO2 ,NIBP, RESP, 2-Temp, PR
Optional:
EtCO2 , Touchscreen , Thermal Recorder ,WLAN accessory ,
Nellcor-SPO2 ,2-IBP Masimo SpO2,Masimo AGM.
ECG
Number of Leads 3 or 5 leads
Lead View
User Slectable:I,II,III,aVR,aVL,aVF,V(5 Lead)
;I,II or III(3 lead)
Gain Slection x1/4,x1/2,x1 and x2
Frequency Response
Diagnostic:0.05 to 90HZ
Monitor:0.5 to 35 HZ
Surgery:1-15HZ
Calibration Signa 1 (mV p-p), Accuracy ：±5%
ECG Signal Range ±8 m V ( Vp-p )
Review Available
Pulse Oxemetry
Range 0 to 100%
Resolution 1%
Accuracy 70% to 99%
range ±2% 1% to 69%range
Method Dual wavelength LED ±5%
NIBP
Technique Oscillometric during inflation
Range Adult：40-270mmHg
Pediatric：40-240mmHg
Neonate：1 0 -150mmHg
Measurment cycle <40 sec,typical
Cycles(Selectable) 2,3,5,10,15,30min 1,2,4hr
STAT model 5 minutes of continuous reading
Max Allowable Cuff Presure
Adult： 3 0 0 mmHg
Pediatric：240mmHg
Neonate：150 mmHg
Resolution 1mmHg
Transducer Accurancy±2mmHg or±2% of reading
Heart(Pulse) Rate
Range Adult 15-300 bpm
Pediatric 15-350 bpm
Accurancy±2bpm or ±3% whichever is greate
Respiration Rate
Rate: Adult: 0 ~ 120 rpm
Neo/Ped 0 ~ 150 rpm
Resolution 1rpm
Accuracy ±2 breath/min
Trends
Memory
96 hr at 30 second intervals for a NIBP
reading every 5 mintues
Display trabular;graphical
Power Requirement
Voltage AC100-240V,50HZ
Power Consumption 8Watts,typical
Battery 1 sealed lithium battery
Battery Life 8hour typical
Recharge time 4.5 hours
Environment
Operating Temperature 59°--95°F（15°--35℃）
Storage Temperature 23°--122°F（-5°--50℃）
Humidity 15% to 90%
• Technical specification :
>15" Colur TFT Display, led backlight .
> Operating Mode Selection: Neonatal/Pediatric/Adult.
> Visual and Audio alarms, adjustable.
> Patient management, name and ag ... read more
Company Name: Patient Monitor
Origin: china
Trade Mark: Hwatime

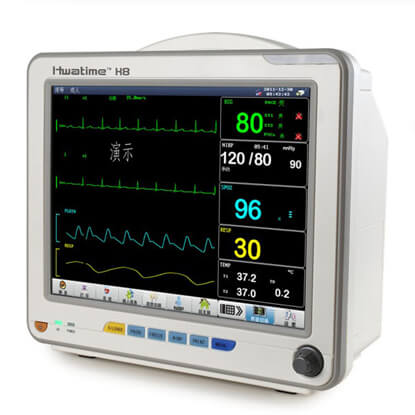

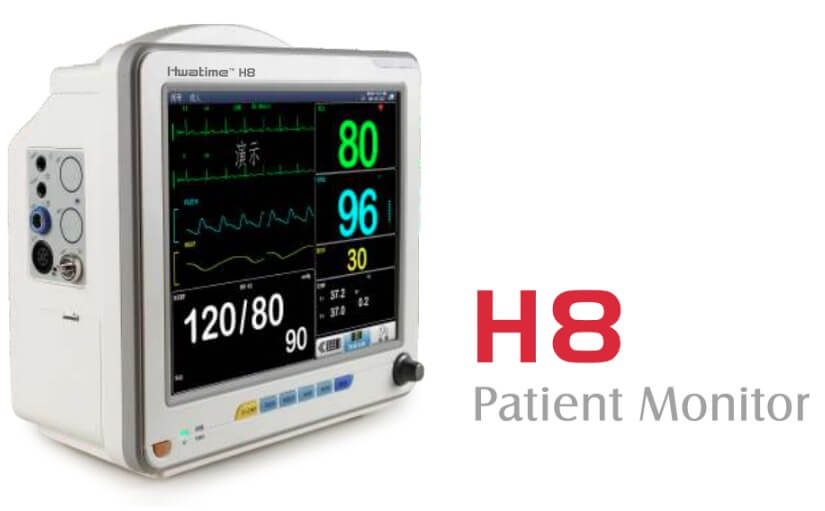

Model: H8
Download Patient MonitorSpecifications:
• Technical specification :
• 12.1” color TFT LCD screen with multi channel waveforms display
• Rechargeable high energy built in lithium battery
• Easy to learn, easy to use, simplified menus and delicated functions keys
• 96 hours data storage
• Suitable for adult, pediatrics and neonates
• Monitors end-tidal CO2 and inspired CO2 accuracy at high respiration rates
• Gas monitoring with cutting edge water filter tube
Standart parameters:
• 3 or 5 Lead ECG
• Hwatime SpO2
• NIBP
• RESP
• 2-Temp
• PR
• Detection parameters: ECG / heart rate, noninvasive blood pressure / pulse rate, oxygen saturation, respiration, pulse, and body temperature
• Color TFT 1,2.1inch LCD HD Monitor
• Enjoy patented technology of the blood pressure measurement
• Portable, suitable for bedside, ICU guardianship, CCU monitoring
• Anti-defibrillation, the anti electric knife
• ECG digital filtering
• Operating system has Chinese / English etc, 14 languages
• Blood pressure storage and playback of 8000 groups above
• Run chart storage and playback more than 680 hours
• Alarm event storage and playback of 200 groups
• Wave form storage and playback of 12 hours
• Embedded with high capacity of rechargeable batteries, AC and DC
• Be able to connect with central monitoring system, support wire and wireless networking, system software supports network upgrading
• Possessing drag density calculation, breathe oxygen and figure, and ST analysis
Be able to monitor ecg etc, physiological parameter for single adult, child or infant. Reliable quality and stable system make medical decision maker more confident, and powerful storage volume ensures free of missing any clinical data. Hwatime Medical, quality talks, dedicated in building more humanized products, and let medical staff more proficient.
• Technical specification :
• 12.1” color TFT LCD screen with multi channel waveforms display
• Rechargeable high energy built in lithium battery
• Easy to learn, easy to use, simplified ... read more
Company Name: Hwatime
Origin: china
Trade Mark: Hwatime

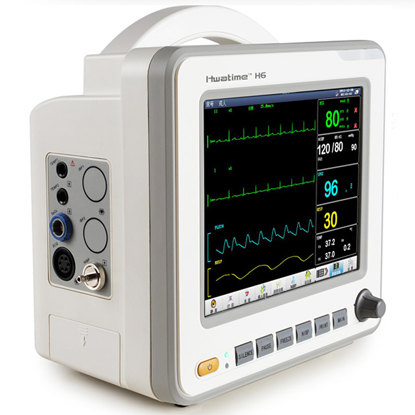

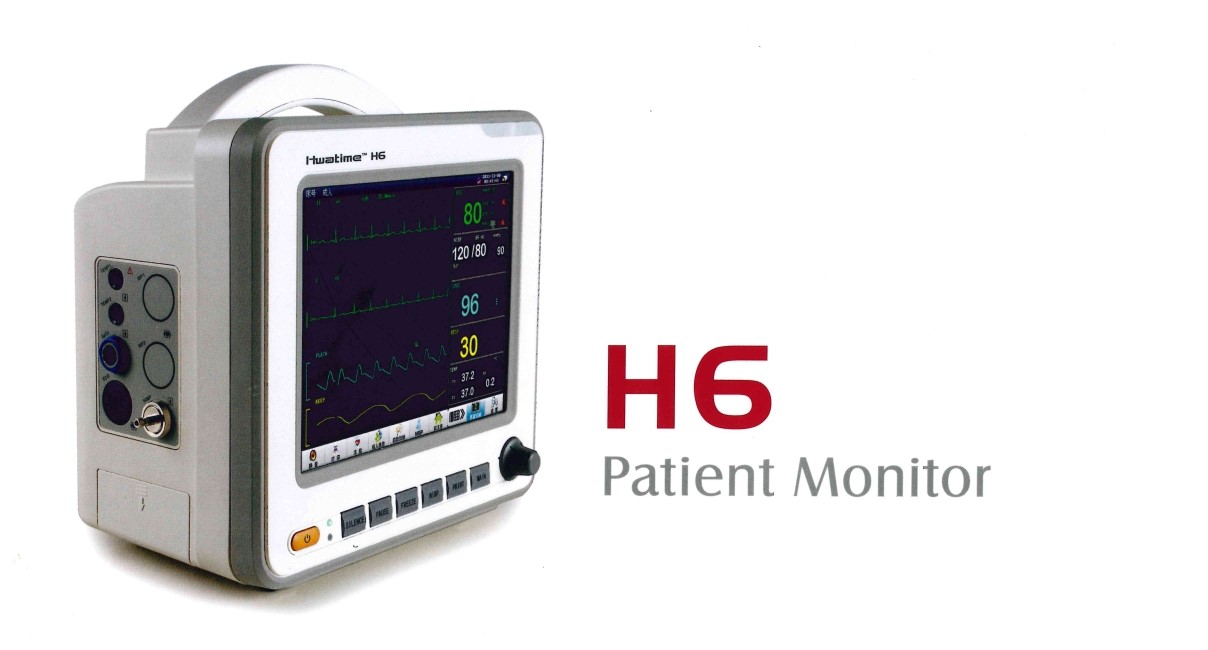

Model: H6
Download Patient MonitorSpecifications:
Specification
• 8.4" Colur TFT Display, led backlight , 800x600 pixels.
• Operating Mode Selection: Neonatal/Pediatric/Adult.
• Visual and Audio alarms, adjustable.
• Patient management, name and age and id.
• Network with Central Station Software,
• Built-in removable and rechargeable lithium battery,
• easy operating UI with both Keypad menu.
• Powerful data storage and managment, Trend graph,
• Trend table, etc
• Arrythmia analysis and S-T segment analysis.
• Compatible to Neonatal, Pediatric, Adult Patients
• Standard parameters:
• 3/5-Lead ECG, Hwatime SpO2 , NIBP, RESP, 2-Temp, PR
• Optional:
• EtCO2 , Touchscreen , Thermal Recorder ,WLAN accessory ,
• Nellcor-SPO2 ,2-IBP,Masimo SpO2,Masimo AGM .
ECG
Lead Mode 3 / 5 leads
LEAD Selection I,II, III, avR, avF, V
GAIN Manual 2.5mm/mv, 5, 10 & 20mm/mv
Auto HR & alarm Adult 15-300BPM,Nep/Ped 15-350BPM
Accuracy + / - 1% or + / - 1bpm
Resolution 1 BPM
Sweep speed 12.5mm, 25mm, 50mm /second
Frequency Response Surgery : 1 – 20 Hz,
Monitor : 0.5 – 40 Hz,
Diagnostic: 0.05 – 130 Hz
Arrhythmia analysis 13 Kinds
NIBP
Method Oscillometric
Mode Manual, Auto, Start
Interval in auto mode
1,2,3,4,5,10,15,30,60,90,120,180,240 & 480mints
Accuracy Max Mean Error : +/- 5mmHg
Alarm type
SYS, DIAS & MEAN, : SYS: 40-275 mmHg,
DIAS:10-215 mmHg, Mean :20- 165 mmHg
SpO2
Measuring Range 1-100%
ALARM RANGE 0-100%
Resolution 1%
AVERAGING 4, 8 & 16 seconds
ALARM DISPLAY 10 seconds
PULSE RATE & ALARM 25-240BPM
RESOLUTION 1 BPM
ACCURACY + / - 2BPM
+ / - 2% - 70% - 100%
Pulse Rate
SourceUser Slectable: Smart,ECG,Pleth,NIBP
Range Adult 15-300 bpm
Pediatric 15-350 bpm
Accurancy ±1bpm or ±1% whichever is greate
Temperature
Channels 2
Range，Accuracy 0°-50℃：±0.1℃
Display Resolution ±0.1℃
Proble YSI 400 and YSI 700 Series
Respiration Rate
Rate Adult: 0 ~ 120 rpm
Neo/Ped 0 ~ 150 rpm
Resolution 1rpm
Accuracy ± 2 breath/min
Trends
Memory
96 hr at 30 second intervals for a NIBP reading every 5 mintues
Display trabular;graphical
Printer (optional)
Type Thermal printer
Paper Speed 25 or 50 mm/sec
Physically
Power Source 110V-240V, 50/60Hz
Weight Approximate 4.2Kg
Audio volume ajustable 1 ~4 level
SCREEN SELECTION
standard, Oxy CRG, Big Font & Trend
Specification
• 8.4" Colur TFT Display, led backlight , 800x600 pixels.
• Operating Mode Selection: Neonatal/Pediatric/Adult.
• Visual and Audio alarms, adjustable.
• Patient management, ... read more
Company Name: TRISMED
Origin: Korea
Trade Mark: TRISMED

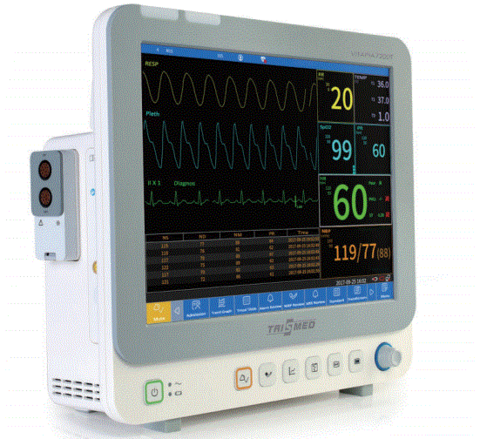

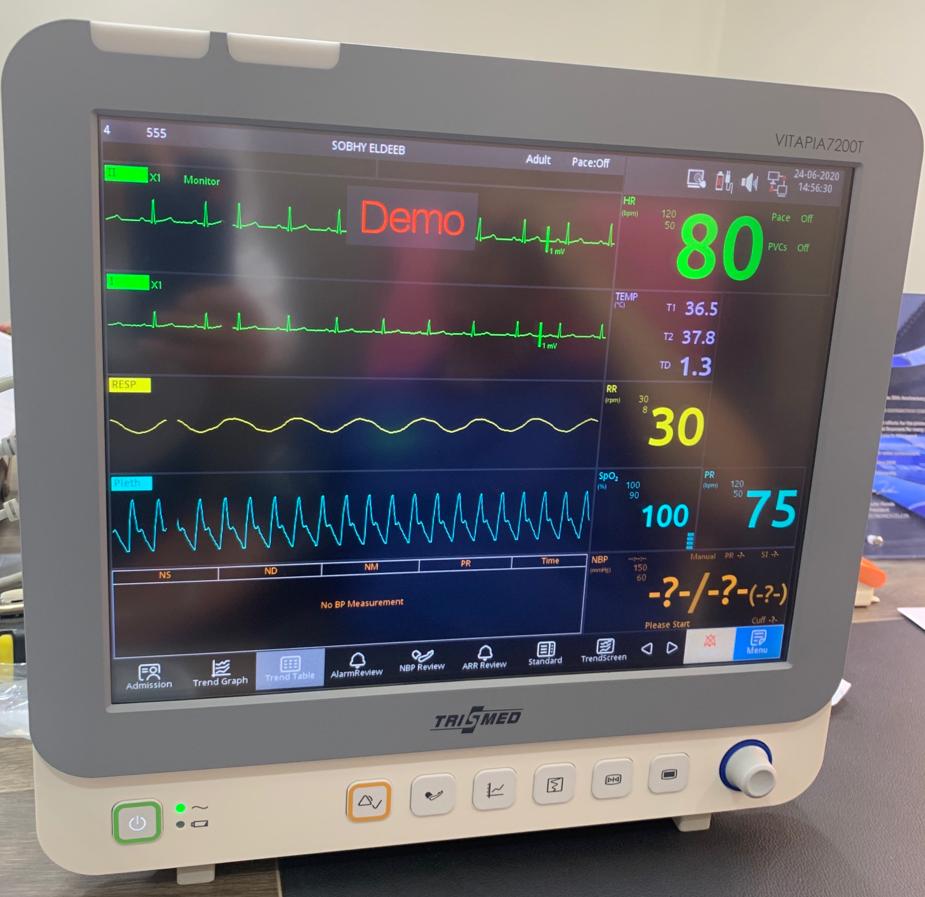

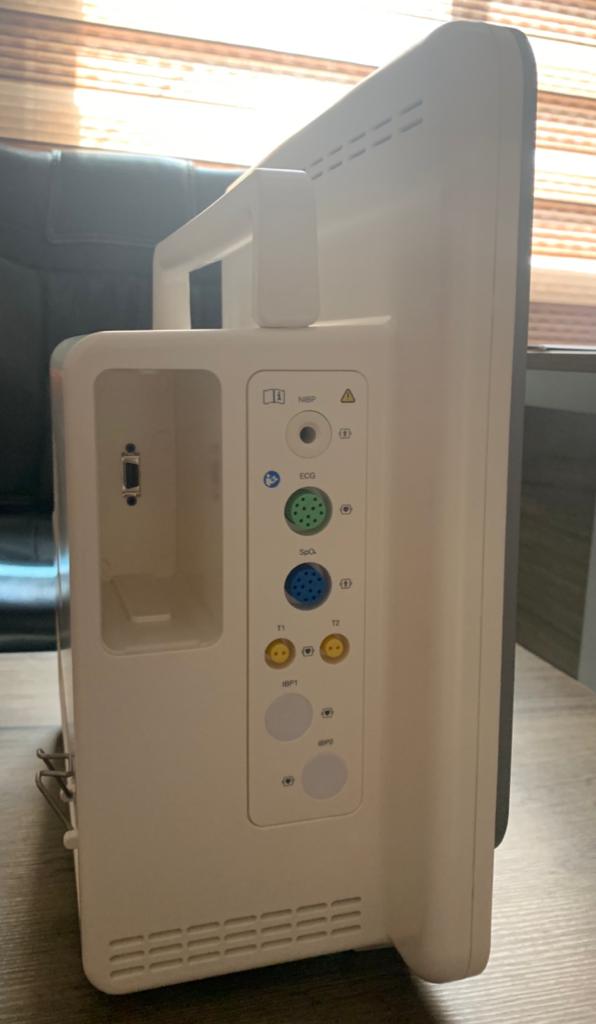

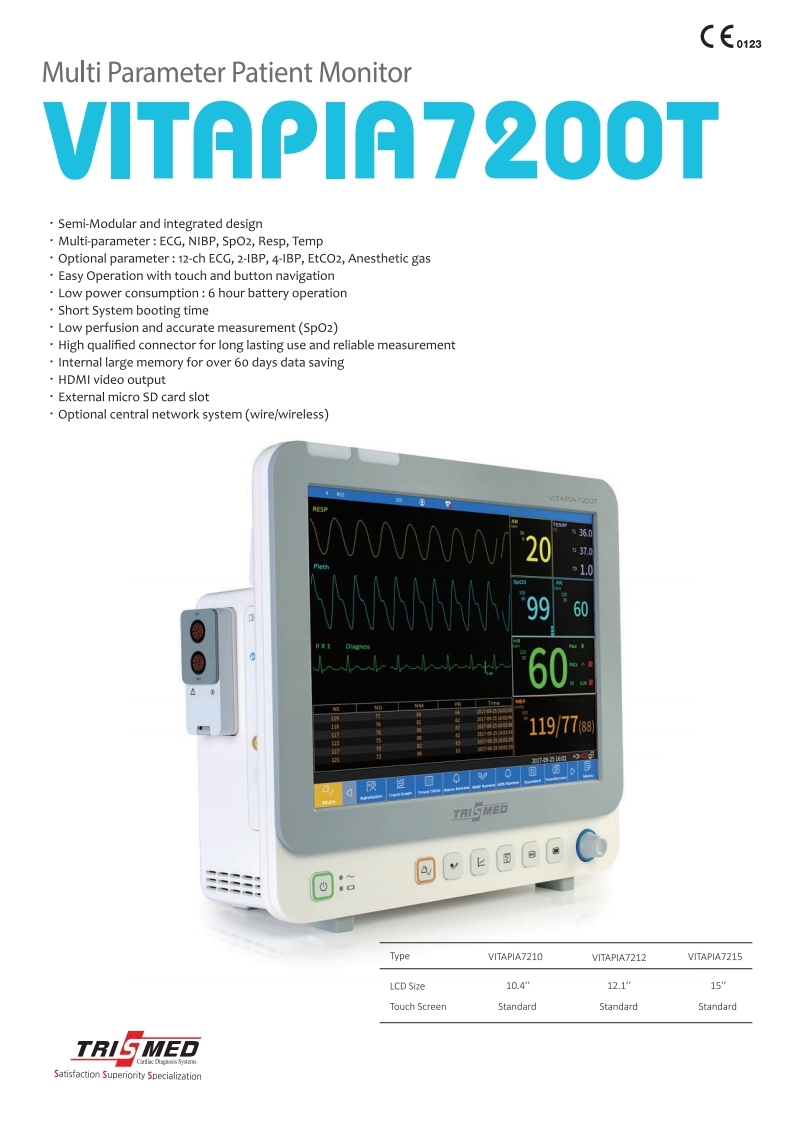

Model: vitapia 7200T
Download Multi Parameter Patient Monitor Touch screen vitapia 7200TSpecifications:
Technical specification :
-Semi-Modular and integrated design
• Multi-parameter: ECG, NIBP, Sp02, Resp, Temp
• Optional parameter: 12-ch ECG, 2-IBP, 4-IBP, EtC02, Anesthetic gas
• Easy Operation with touch and button navigation
• Low power consumption : 6 hour battery operation
• Short System booting time
• Low perfusion and accurate measurement (Sp02)
• High qualified connector for long lasting use and reliable measurement
• Internal large memory for over 60 days data saving
• HDMI video output
• External micro SD card slot
• Optional central network system (wire/wireless)
■ Display :
• Device:
15" (Type 7012S,7000K), Color TFT LCD , Touch Sccreen
• Messages:
8 Waveforms Maximum
1 Alarm LED (yellow/Red)
1 Power LED (Green)
1 Battery Charge LED (Green)
3 Sound mode corresponding Alarm mode
ECG :
• Lead Mode : 5 Leads(R, L, F, N, C or RA, LA, LL, RL, V)
• Lead Selection: I, II, III, avR, avL, avF, V
• Waveform: 2ch
• Lead Mode: 3 Leads(R, L, F)
• Gain: x2.5mm/mV, 5.0mm/mV, x10mm/mV, x20mm/mV auto
• HR and Alarm Range:
Adult 15~300bpm
Neo/Ped 15~350bpm
• Differential Input Impedence: ˃ 5 MΩ
• CMRR:
Monitor ˃ 105dB
Operation ˃ 105dB
Diagnosis ˃ 85dB
• Electrode offset potential: ±300 mV
• Leakage Current: ˂ 10µA
• Baseline Recovery: ˂ 3s After Defi.
• ECG Signal Range: ±8mV(Vp-p)
• Bandwidth:
Surgery 1~15 Hz
Monitor 0.5~35Hz
Diagnostic 0.05~100Hz
• ST Segment Monitoring Range:
Measure and Alarm -2.0~+2.0mV
• Calibration Signal: 1mV(Vp-p), ±5% Accuracy
• ARR Detecting :
Type : ASYSOLE, VFIBNTAC, COUPLET, BIGMINY, TRGEMINY,
R, ON T, VT˃2, PVC, TACHY, BRADY, MISSED BEATD,
PNP, PNC
• Alarm : Available
Review : Available .
■ Recall :
• Trend Recall:
Short : 1hrs, 1 Second Resolution
Long : 72 hrs, 1Min. Resolution
• Alarm Event Recall: 60 alarm events of all parameters and 8/16/32 seconds of corresponding waveform
• NIBP Measurement Recall: 400 NIBP measurement data
■ RESPIRATION :
• Method:Impedance between R-F(RA-LL)
• Differential Input Impedance: ˃2.5MΩ
• Measuring and alarm Range: 0.3 ~ 2.5 Hz
Adult 0~120 rpm Neo/Ped 0~150 rpm
• Resolution: 1 rpm
• Accuracy: ± 2 rpm
Apnea Alarm : 10 ~ 40 S
■ NIBP :
• Method: Oscillometric
• Mode: Manual, Auto, STAT
• Measuring Interval in AUTO Mode:
1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240, 480 Min.
• Measuring Period in SATA Mode: 5 Min.
• Pulse Rate Range: 40~240 bpm
• Alarm type: SYS, DIA, MEAN
• Measuring and alarm Range:
Adult Mode 10~270 mmHg
Pediatric Mode 10~200 mmHg
Neonatal Mode 10~135 mmHg
• Resolution: Pressure 1 mmHg
• Accuracy: Pressure
Maximum Mean error ± 5 mmHg .
Maximum Standard deviation ± 8 mmHg .
RESPIRATION :
• Method:Impedance between R-F(RA-LL)
• Differential Input Impedance: ˃2.5MΩ
• Measuring and alarm Range: 0.3 ~ 2.5 Hz
Adult 0~120 rpm
Neo/Ped 0~150 rpm
■ SpO2 :
• Measuring Range: 0~100%
• Alarm Range: 0~100%
• Resolution: 1%
• Accuracy: 70%~100% ± 2%
0%~69% unspecified
• Actualization interval: About 1 Sec.
• Alarm Delay: 10 Sec.
• Pulse Rate Measuring and Alarm Range: 30~250bpm
• Resolution: 1bpm
• Accuracy: ± 2bpm
TEMPERATURE :
• Channel: 2-ch(7012S, 7010S, 7000K(option))/1-ch(7010E,7000K)
• Measuring and Alarm Range: 0~50°C
• Resolution: 0.1°C
• Accuracy: ±0.1°C
• Actualization interval: About 1
• Average Time Constant ˂ 10
Signal Interface :
• External Display :Standard VAG
• ECG Output: BNC
• Amplitude: 1V/mV
• Accuracy:˂ 5%
• Impedance: 50 Ω
• Signal Delay: ˂ 20 Ms
Power Supply: 100/240VAC, 50/60Hz, Pmax = 80 VA
Battery : Rechargeable 2.3 A/Hr 12V Lead-Acid battery
Optional :
-CO2
-IBP
• Accessories :
1- ECG Cable
2- SPO2 Probe
3- Tempreture Probe
4- NIBP
Technical specification :
-Semi-Modular and integrated design
• Multi-parameter: ECG, NIBP, Sp02, Resp, Temp
• Optional parameter: 12-ch ECG, 2-IBP, 4-IBP, EtC02, Anesthetic gas
• Easy ... read more
